EMG || ECG || EOG Sensor (All in One BioSensor for Muscle, Eye and Heart Signals,Arduino Nano Shield ) -MaM Sense-

>>>

Brand Name MaM Sense

Origin AU(Origin)

Usage biyosensor

Material Mixture

Type Biosensor

Output Analog Sensor

Theory emgsensor

Model Number MaM Sense

is_customized Yes

ECG Sensor EMG Sensor

EOG Sensor Bio Sensor

Muscle Sensor Electrooculography

Heart Sensor bio sensor

Muscular signal muscle signal detector

EMG EOG

Worlds’ first EOG-EMG and ECG integrated circuit.

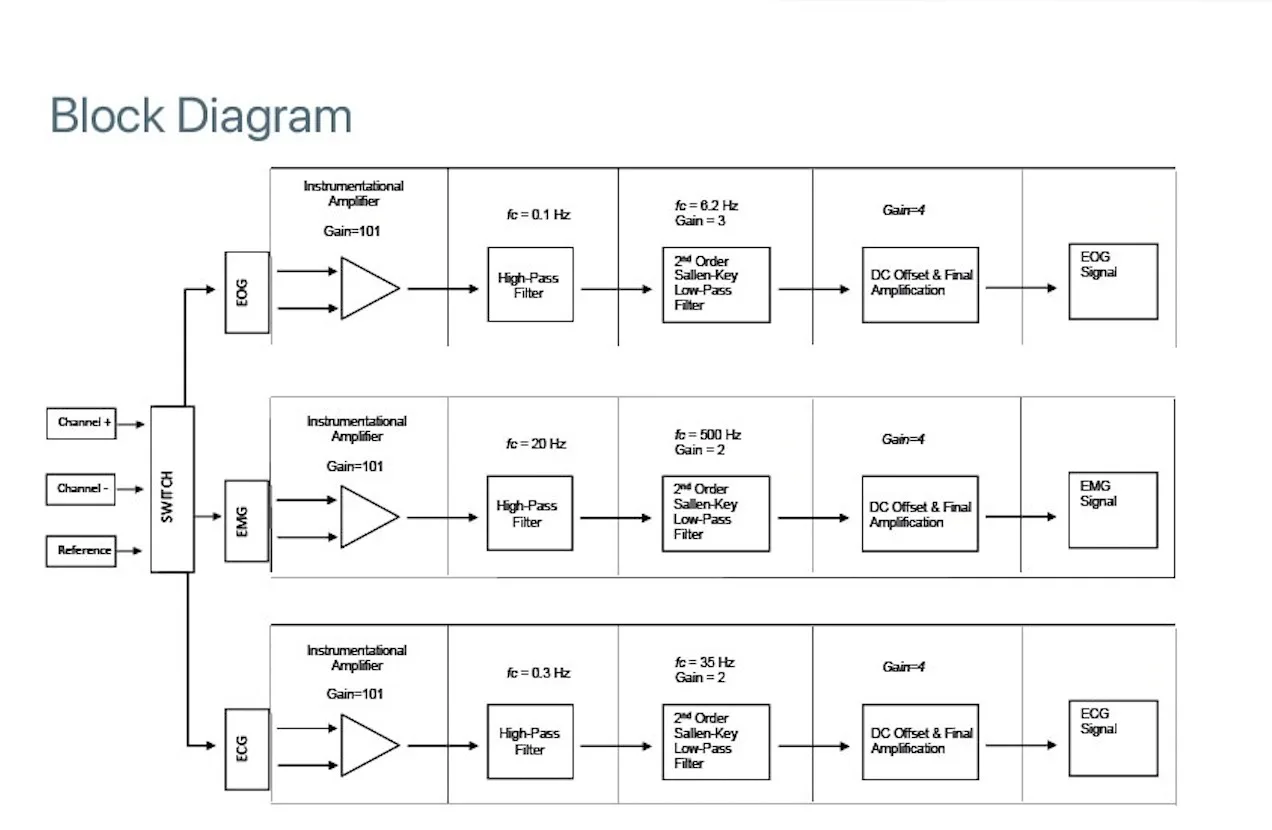

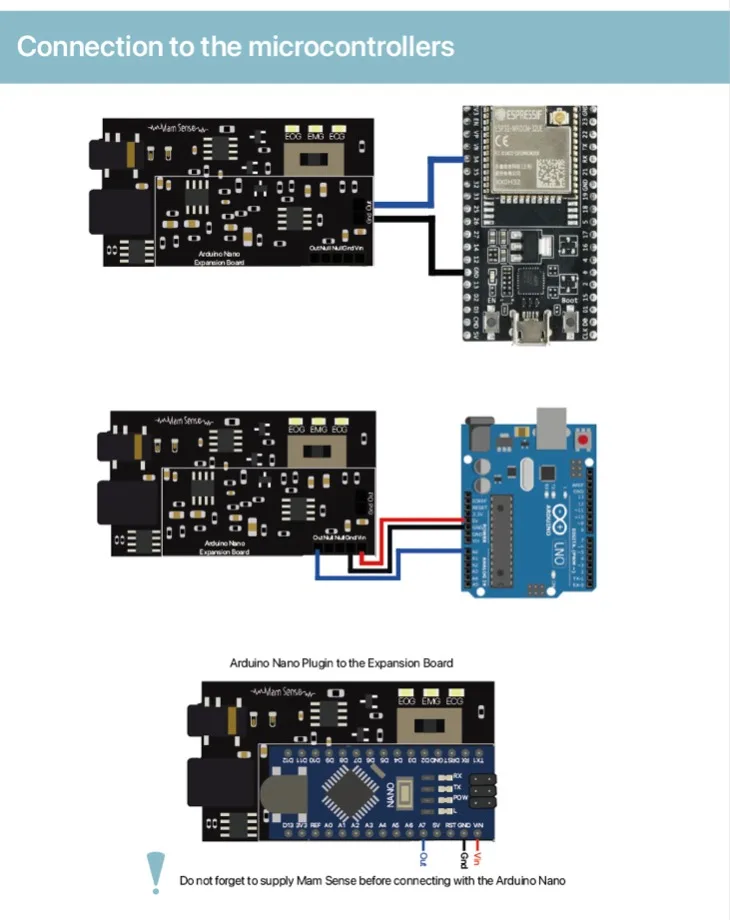

MaM Sense allows makers and developers to process 3 different kinds of signals with a single board, namely EOG, ECG and EMG. The board plugs into an Arduino Nano powers both itself and the Arduino Nano via a common DC jack and starts gathering signals from elctrodes with varying filter designs and amplification factors depending on the selected signal type via a 3 way switch.

Arduino codes has been shared by our engineers to help developers. See and download codes from our website www.mamhightech.com

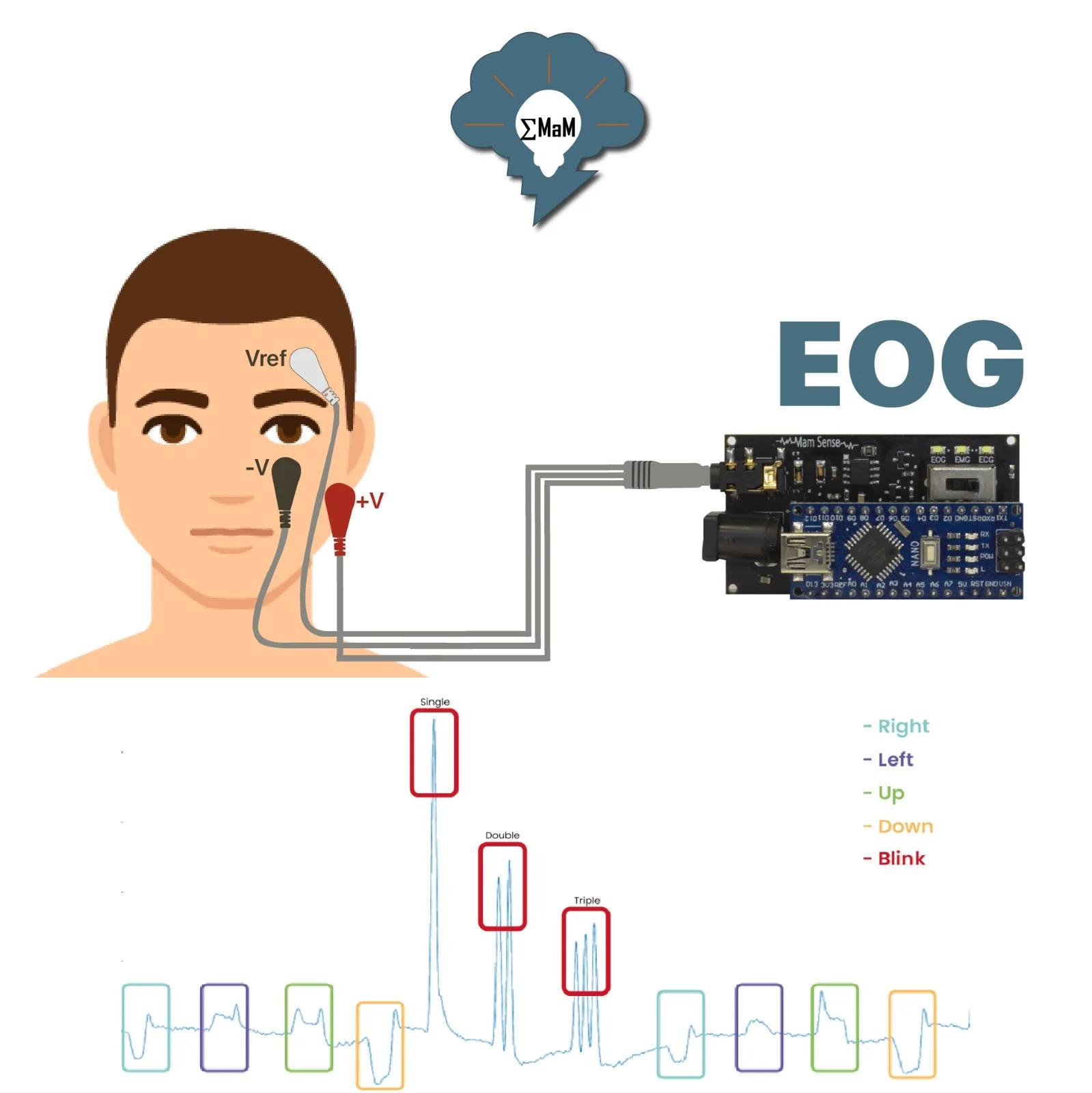

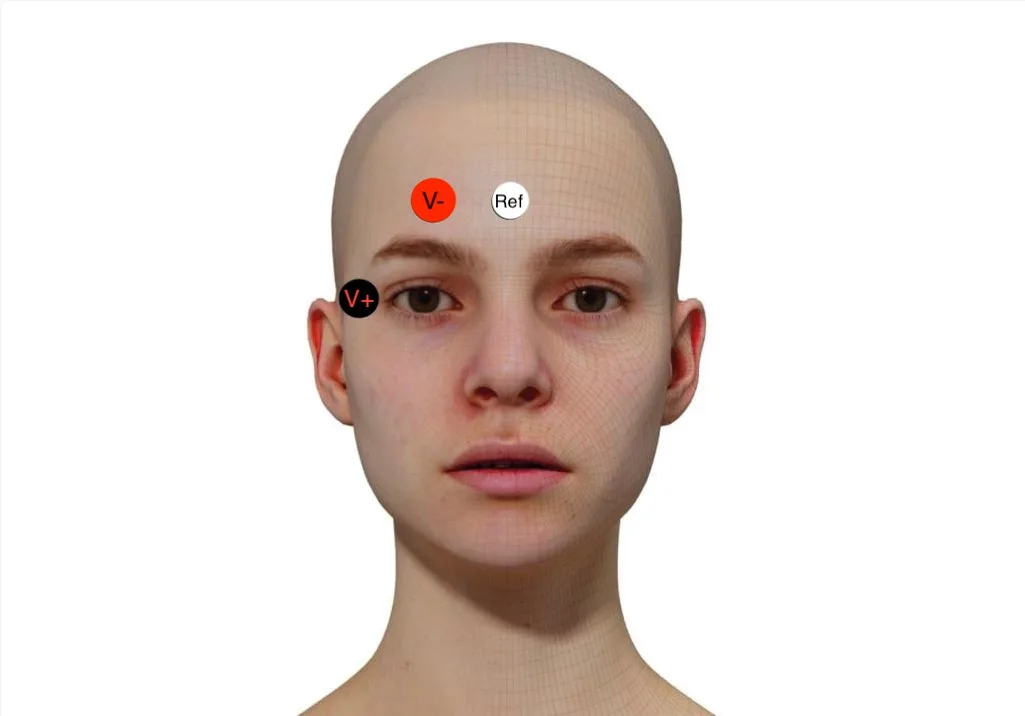

 EOG Signals can be obtained from eye which their potential difference are between 0.1-6.00 Hz. Electrode positions and signals can be seen at the following images.  For the ECG electrodes combinations and obtained signals are:

 For the ECG electrodes combinations and obtained signals are:

EMG signals acquisition of electrical activity produced by skeletal muscles in the range of 20-500 Hz .
