LCD Modules>>>Electronic Components & Supplies
Brand Name STONE
Origin CN(Origin)
Display Mode 500:1
Model Number STVC070WT-01
is_customized Yes
Type TFT
Resolution 800x480
CPU Cortex M4
Brightness 400
Interface RS232/RS485/TTL/USB
Viewing Area(mm) 154.1x85.9
Voltage(V) 6-35
Flash Memory 128M-1GB
Power Consumption(W) 2.6
LCD Class A
STVC070WT-01
The STVC070WT-01 is the intelligent TFT LCD Module withUART PORTwhich can be controlled byANY MCUvia SimplePowerful Command Set. So it can be used as colourful TFT Display & Touch controller in various electronic equipment.
The STVC070WT-01 include CPU , TFT Driver,Flash Memory,UART port,power supply and so on,the important is that it has the ready-madeBasic Control ProgramandPowerful Design Software,so that it can reduce much development time and cost for engineers.

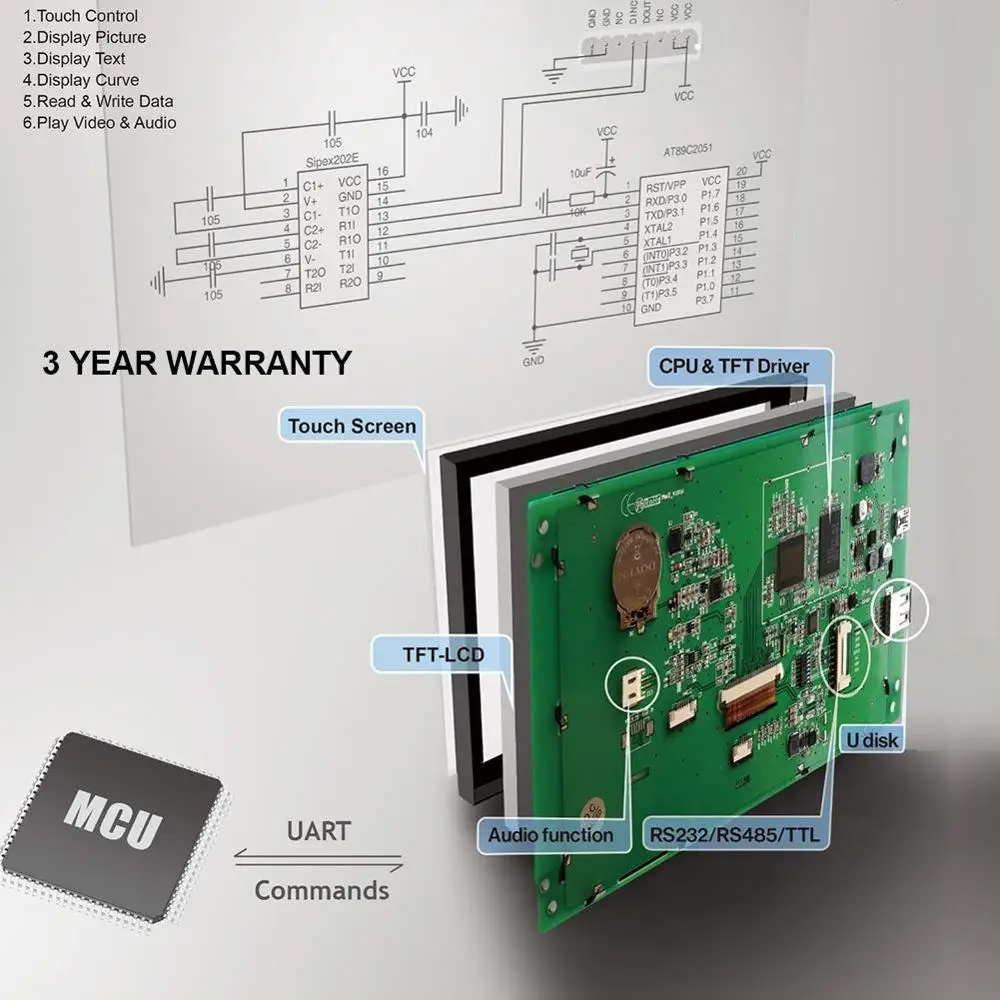

Working Principle

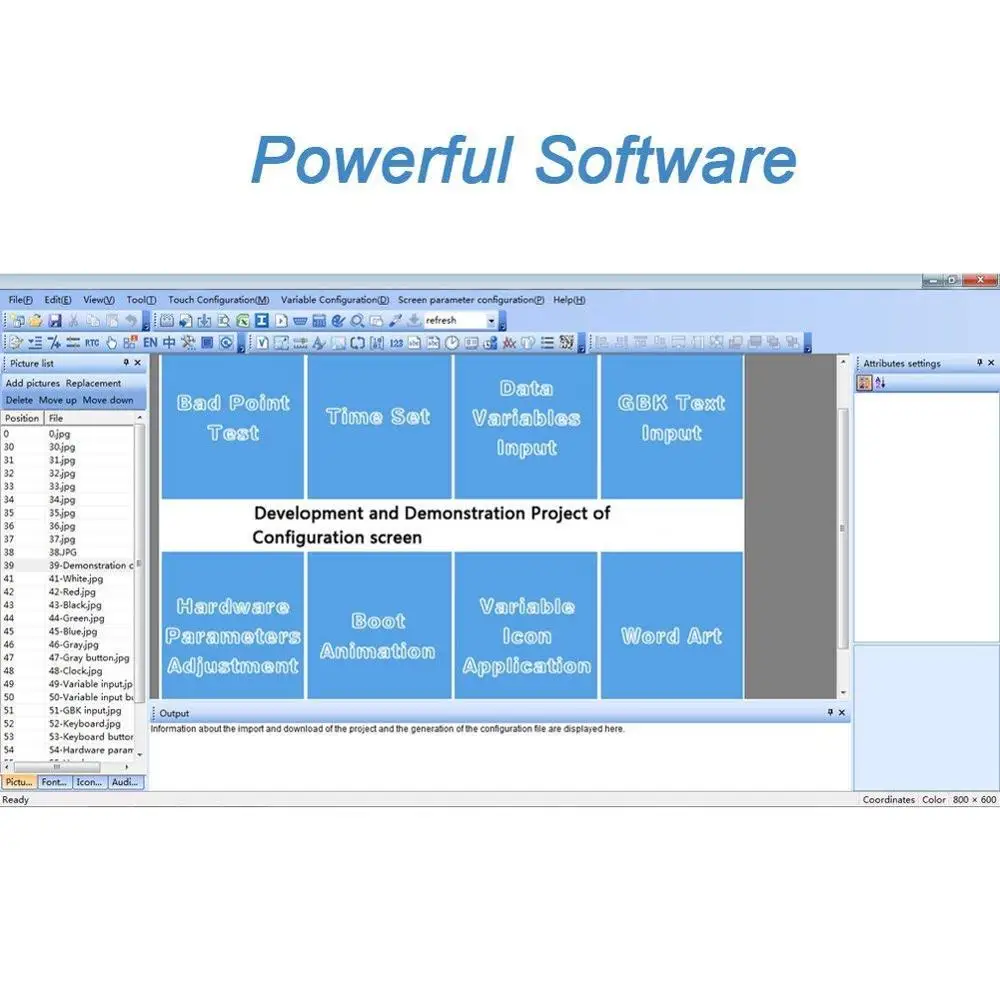

Software Operation
1.Design a group of individual Graphic User Interface!
2.Connection by RS232/RS485/TTL/Level Directly!
3.Write the C or C++language program for ANY MCU to control the TFT-LCD Module via Simple & Powerful Hex Command Set!
Function
Physical Parameter
Model
STVC070WT-01
Size (Inch)
7.0"
Resolution
800×RGB×480
Color
65536 colors (16 bit)
Viewing Area
154.1mm×85.9mm
Pixel Spacing
0.1905 mm × 0.0635 mm(H×V)
Overall Dimension
186.3 mm × 105.4 mm × 15.3 mm(N)/16.9 mm(T)
Net Weight
250 g(N)/ 325 g(T)
TFT Panel
A+ Class Industry Panel
Touch Screen
Industry Level 4 wire resistance Or without touch screen is optional
Backlight ParameterBacklight Type
LED
Brightness
400 cd/m2(Brightness can be adjustable in 100 levels.)
Contrast
500:1
Backlight life
50,000 hours
Viewing Angle
70°/ 70°/ 50°/ 60° (L/R/U/D)
Working Temperature
-20°C ~ +70°C
Working Humidity
55°C, 85%
Storage Temperature
-30°C ~ +85°C
Screen Mode
Digital
Performance ParameterCPU
CortexM4
LCD Controller
CPLD EPM240
Refresh Rate
200MHz
Picture Switching Speed
40 ms/picture (25 pictures/s)
Flash Memory
Standard 128m, Extension 1GB
Memory Amount for picture
According to the capability of the image, Suggest "JPG" format
Interface
RS232/RS485/ TTL /USBInterface
Pictures downloading
USB2.0 (12Mbps) & U storage Disk downloading
Voltage Range
DC6.0V ~ 35V (typical value: 12V)
Power
2.6W
Test ReportMTBF
4,250,000H
Working Temperature
-20°C ~ +70°C
Air Humidity
60°C, 90%
Continuous Vibration Testing
10-55Hz, 1.5mm, 10G
Impact Acceleration Testing
6ms, 100G
ESD Testing
10KV
Radiation Reliability Testing
44W
Main Size of TFT LCD ModuleSize
Resolution
3.5''
320*240;320*480
4.3''
480*272
5''
480*272;640*480;800*480
5.6''
640*480
5.7''
640*480
7''
800*480;800*600;1024*600
8''
800*600;1024*768
9.7''
1024*768
10.1''
1024*600
10.4''
800*600
12.1''
1024*768
15.1''
1024*768

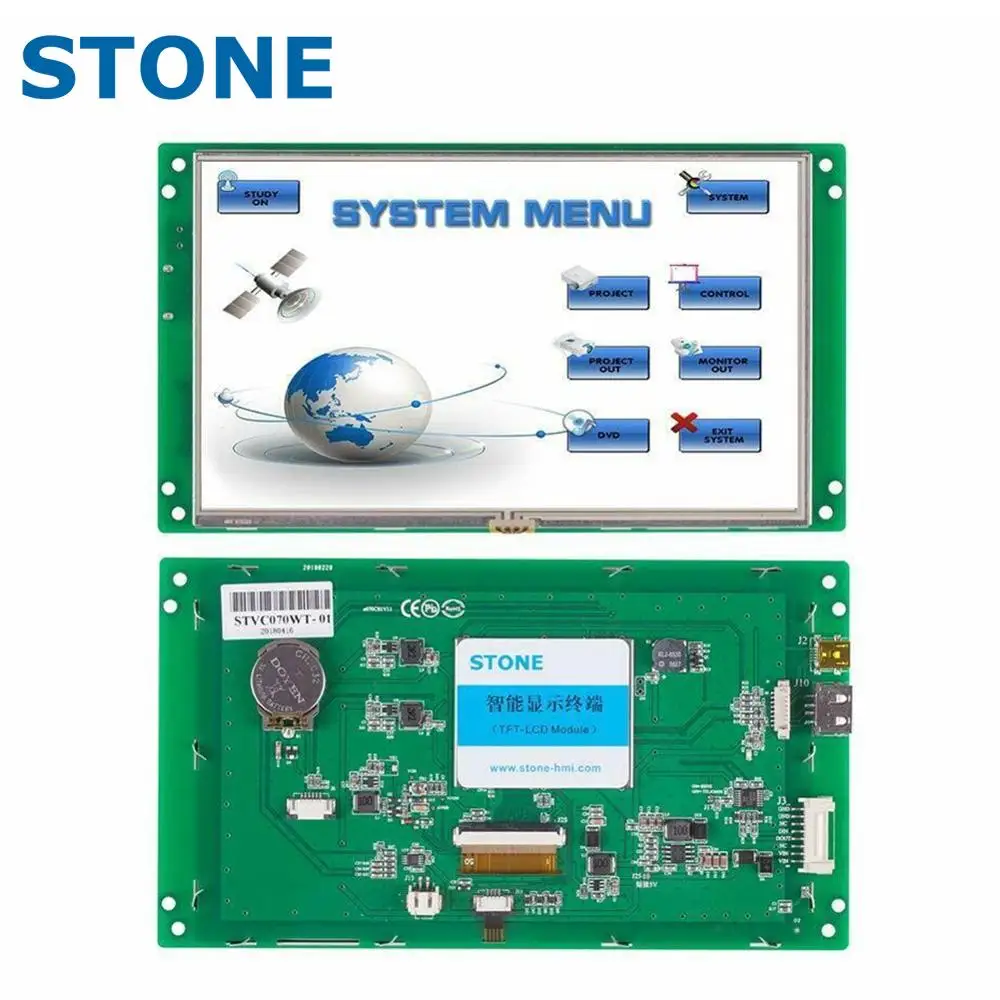

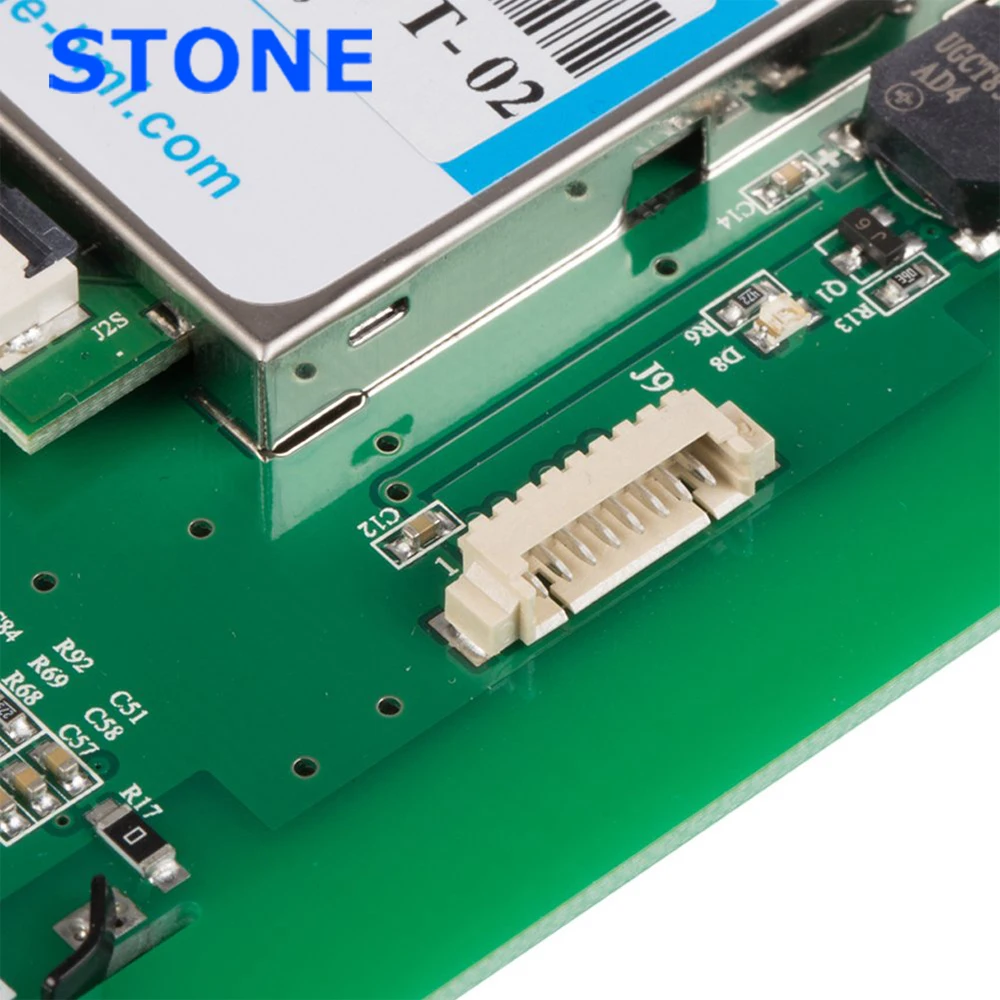

Product PictureProduct Picture

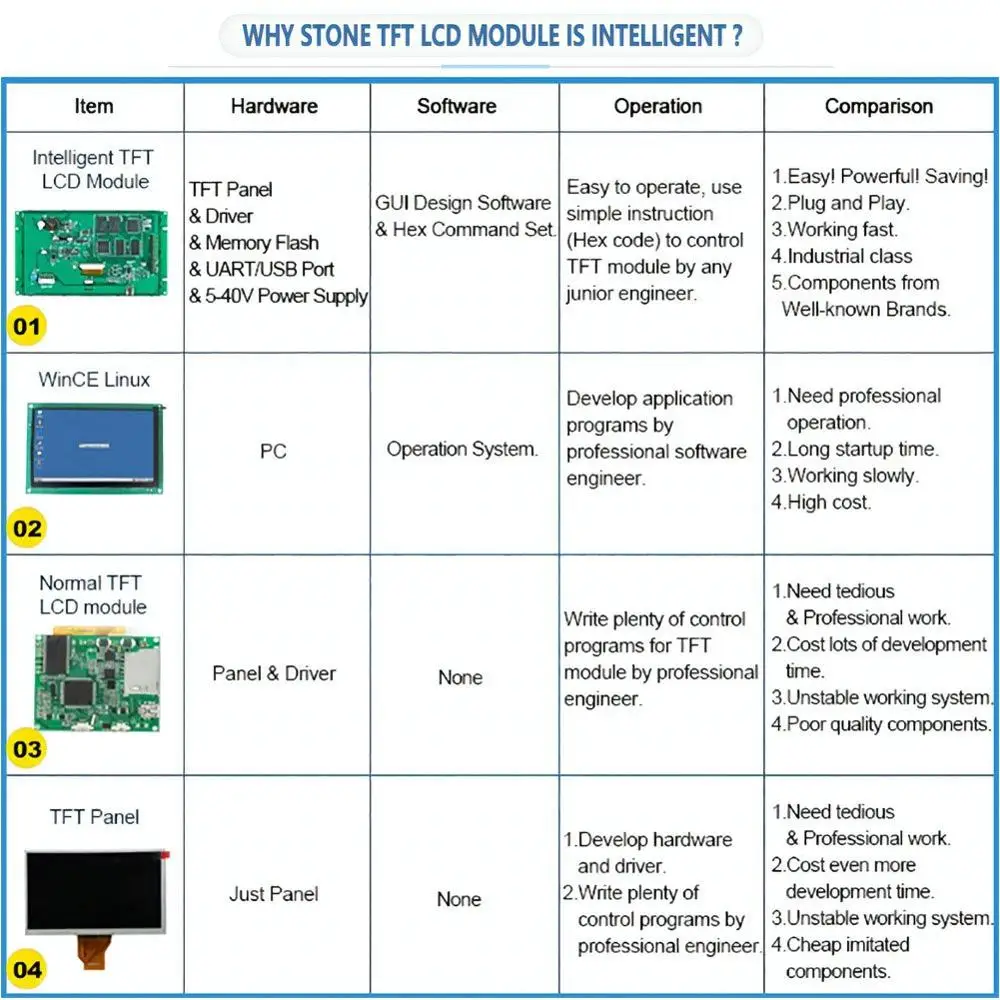

Why STONE TFT LCD Module Is Intelligent?
Item
Hardware
Software
Operation
Comparison
TFT Panel & Driver & Memory Flash & UART/USB Port &5-40V Power Supply
GUI Design Software & Hex Command Set
Easy to operate,use simple instruction(Hex code)to control TFT module by any junior engineer
1.Easy!Pwerfull!Saving!
2.Plug and Play.
3.Working fast.
4.Industrial class.
5.Components from Well-known Brands.
PC
Operation System
Develop application programs by professional software engineer.
1.Need professional operation.
2.Long startup time. 3.Working slowly.
4.High cost.
Panel&Driver
None
Write plenty of control programs for TFT module by professional engineer.
1.Need tedious & Professional work.
2.Cost lots of development time.
3.Unstable workin system.
4.Poor quality components.
Just panel
None
1.Develop hardware and driver.2.Write programs by professional engineer.
1.Need tedious &Professional work.
2.Cost even more development time. 3.Unstable working system.
4.Cheap imitated components.
Application
our services
1. 3-YEAR Warranty Period
Replace by a brand-new Unconditionally
2. customizable service.
a. Customize TFT-LCD Module according to customer’s requipment . b. Develop the customization function. c. Extend the flash memory to 1GB or 2GB. d. Assign the interface to RS232, RS485 or TTL.
1. Does your product include program software?A: Yes. The free graphic user interface software is included.2. How do you program the display?A: We don’t have to write any code for the display or program the driver. Our display set include CPU and memory, you can directly use .jpg file to generate a GUI and use it to send HEX command set to communicate with your micro control unit.3. What kind of interface does this display have?A: The display set is using UART serial port (RS232/RS485/TTL) to communicate with any kind of MCU unit by HEX command sets.4. Can the display play video/audio files?A: Yes. The basic display set have 128 MB memory space and you can storage any video/audio file in it. The display can play the files directly.5. Are you using resistive touch or capacitive touch display?A: We have resistive touch, capacitive touch and non-touch display available.6. What else do I need to use this display set?A: We provide the cable, converter, software and manual. You just need a PC with windows system, and a 12V DC power supply to work with the display.7. I don’t know how to design the GUI or communicate with my device. Where can I get help?A: We provide a specific English manual and development guide for you. You can get any knowledge required for the developing. You can also check our YouTube channel for the instruction video, or directly contact with our sales to get some assistance.8. What if the display was broken or failed?A: We provide 3 years unconditional warranty for our I-serial and A serial display, 1 year unconditional warranty for the C-serial display. You can get a free replacement if your display was damaged or failed.
