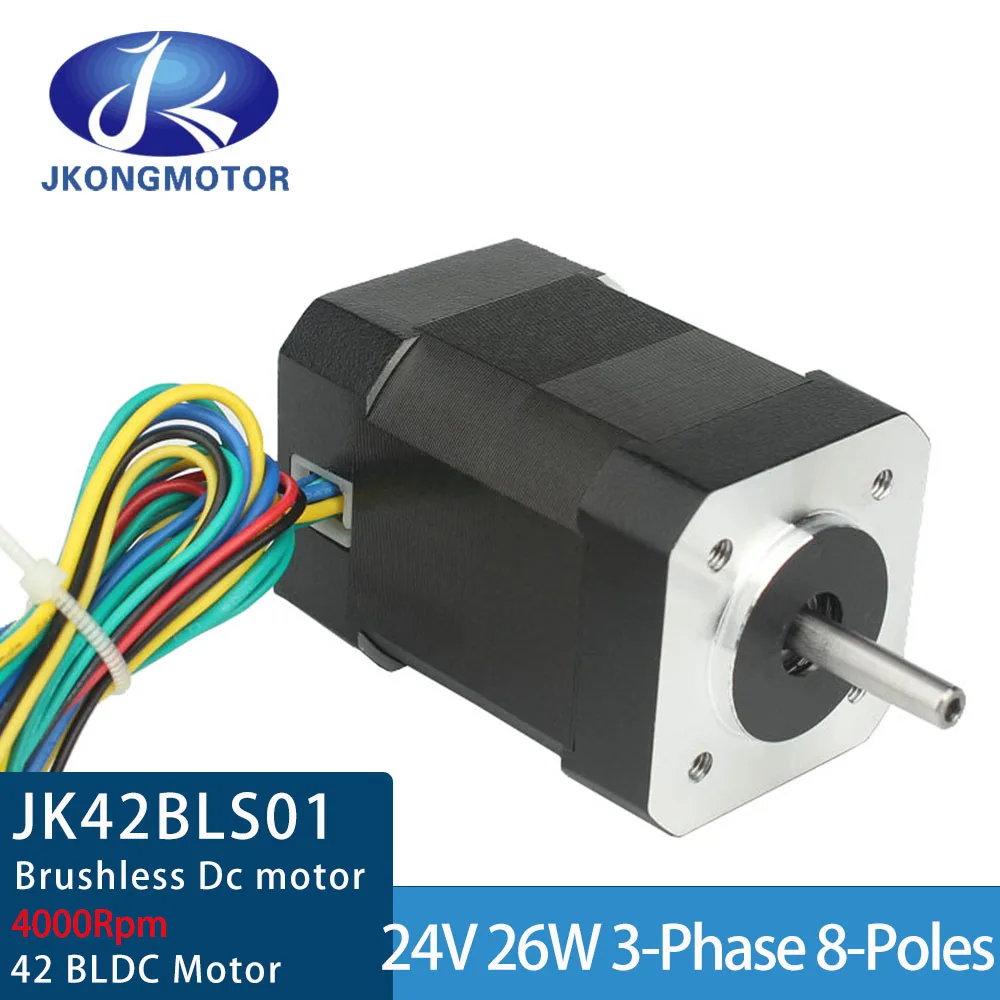

Brushless DC motor JK42BLS 41mm BLDC 24V 1.8A 4000rpm 26W Brushless 3 Phase 8-Poles Small DC Motor for DIY for industry

Motors & Parts>>>Home Improvement

Origin CN(Origin)

Certification ce

Certification ROHS

Commutation Brushless

Model Number JK42BLS01

Type Micro Motor

Protect Feature Explosion-proof

Output Power 26W

Construction Permanent Magnet

Torque 0.19NM

Usage BoAt

Usage car

Usage Electric Bicycle

Usage Fan

Usage Home Appliance

Efficiency IE 4

Number of Poles 8

Number of phase 3

Rated torque 0.0625NM

Peak torque 0.19NM

Torque constant 0.039Nm./A

Rotor inertia 24g.cm2

Shaft run out 0.025mm

Rated Speed 4000rpm

Rated Current 1.8Amps

Peak Current 5.4Amps

Body length 41mm

Senser Honeywell

Degree of protection IP30

Speed(RPM)

4000

Voltage(V)

24V

Recommend for You

Brushless DC motor JK42BLS 41mm BLDC 24V 1.8A 4000rpm 26W Brushless 3 Phase 8-Poles Small DC Motor for DIY for industry

Product Description:

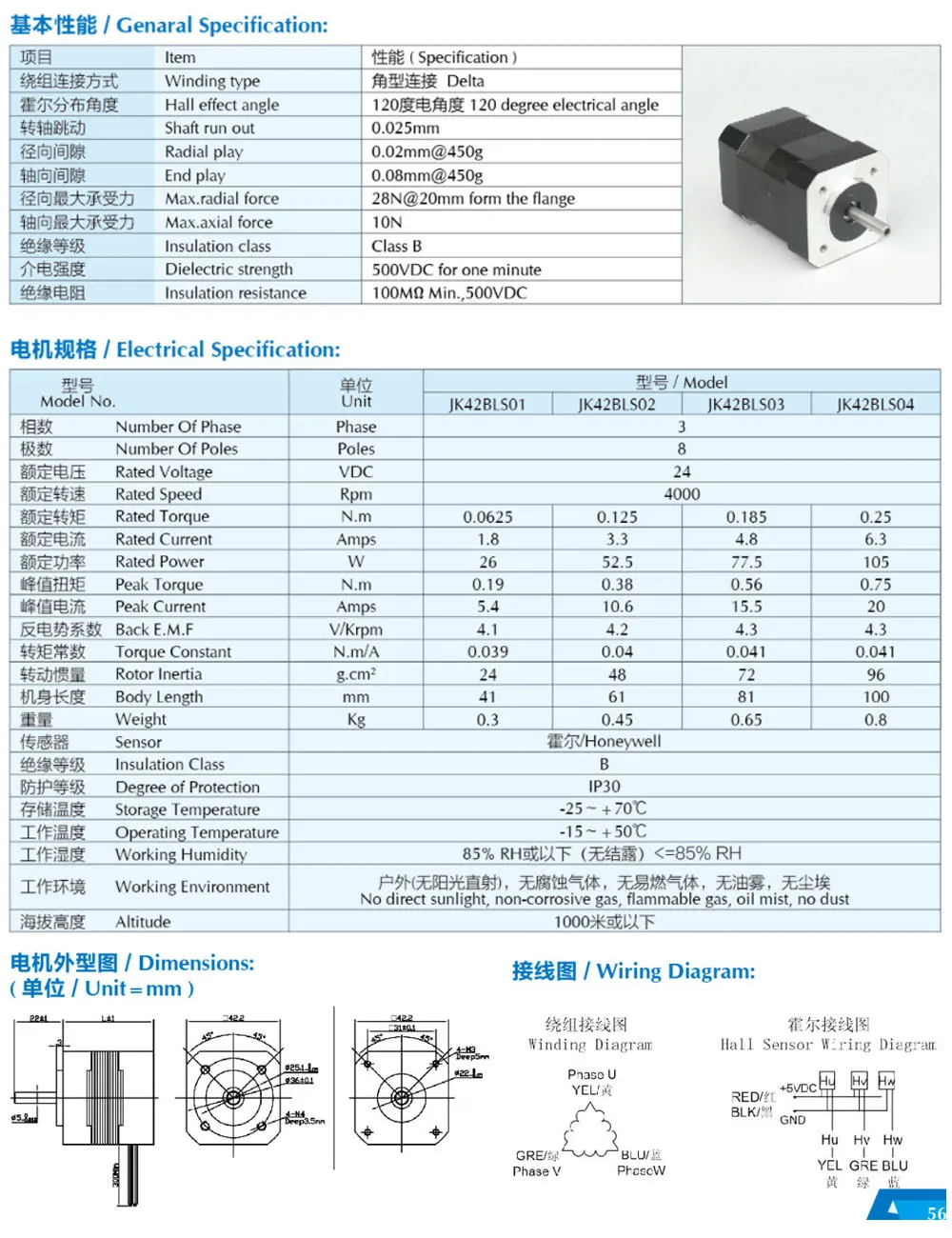

Brand: JkongmotorModel No.: JK42BLS01Number of Phase: 3phaseNumber of Poles: 8polesRated Voltage: 24VRated Speed: 4000RpmRated Torque: 0.0625NmRated Current: 1.8ARated Power: 26WPeak Torque: 0.19NmPeak Current: 5.4ARotor Interia: 24g.cm3Body Length: 41mmSenser: HoneywellInsulation Class: BDegree of Protection: IP30Storage Temperature: -15~+70℃Operation Temperature: -15~50℃
