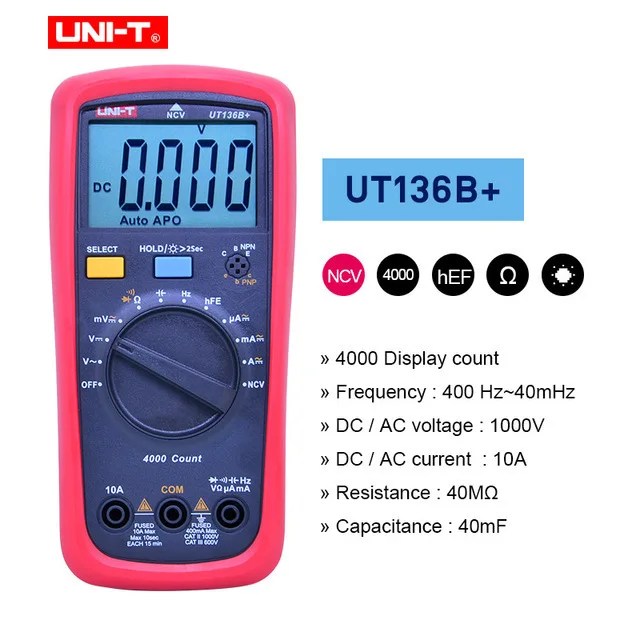

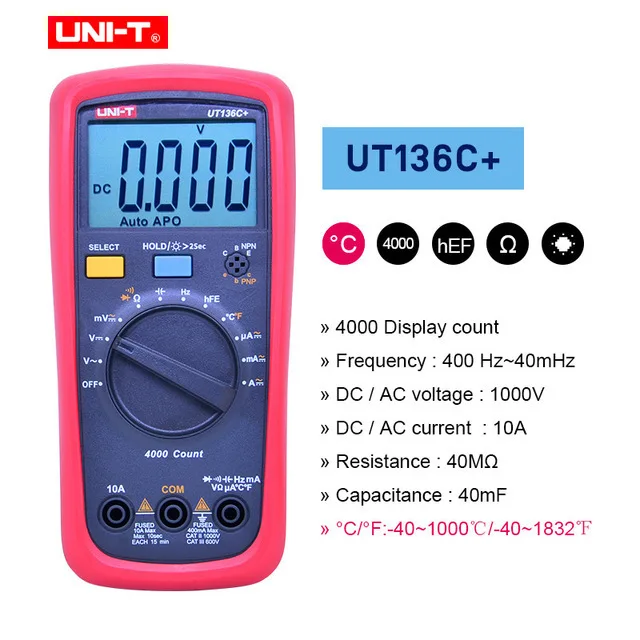

UNI-T UT136C+ high precision digital multimeter AC and DC voltage and current ohm diode frequency automatic range UT136B+

Electrical Instruments>>>Tools

Brand Name UNI-T

DIY Supplies ELECTRICAL

Certification CE

Certification FCC

Certification RoHS

Origin CN(Origin)

Model Number UT136C+UT136B+

AC Current 400uA/4000uA/40mA/400mA/4A/10A

Is Smart Device NO

AC Voltage 400mV/4V/40V/400V/1000V

Measuring Resistance Range 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40M

Operating Mode Auto range

Display Type Digital Display

DC Current 400uA/4000uA/40mA/400mA/4A/10A

DC Voltage 400mV/4V/40V/400V/1000V

Measuring Capacitance Range 4nF/40nF/400nF/4uF/40uF/400uF/

Dimensions 250mm*150mm*80mm

Operating Temperature 0 - 40 ℃

Color

Introduction:The new generation of UT136+ series digital multimeter has an innovative industrial design which ensures that the product can withstand a drop of 2 meters height. Large LCD screen provides a clear display and its 4 times/second sampling rate provides users with more accurate readings. UT136+ series is designed to work safely in CAT II1000V/CAT III 600V environment. This series is suitable for civil/commercial use such as HVAC technicians and electricians.Features:1. Measures up to 1000V and 10A AC/DC voltage and current2. Equipped with 3mm protective sleeve; 2 meters drop proof3. Large LCD dual display; up to 4 times/s refresh rate4. Full range protection: can endure up to 1kV over voltage shock;overload alarm5. Quick response rate6. Low power consumption and auto power saving function;UT136B+ UT136C+ Difference:UT136B+ with NCV Function,But UT136C+ with Temperature testing function.Hope customer check carefully to avoid unnecessory
