Brand Name 5Aplusreprap
Origin CN(Origin)
Item Type Temperature Resistance
Model Number PT100
Size 3 (OD) x 15 (length) mm
cable length about 1.5meter
Material 304 stainless steel and PTFE silver shielded wire
Name PT100 Thermal Resistance V6
Size
KF 2PIN 1pc
Y terminal 1pc
Color
PT100-1M
PT100-1.5M
PT1000-1M
PT1000-1.5M
45664
Welcome to 5Aplusreprap factory store ;)

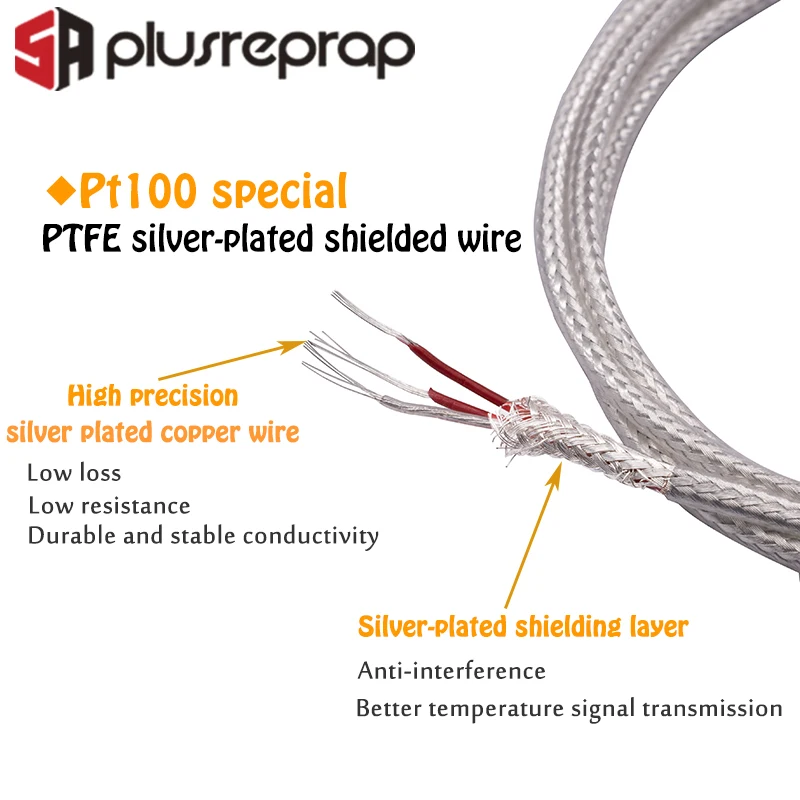

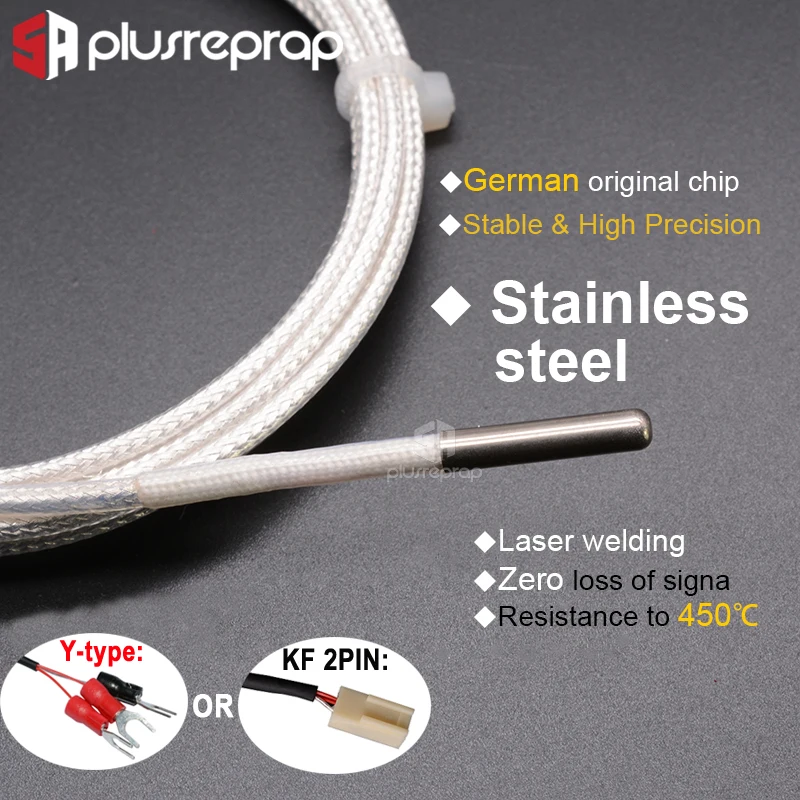

Type of thermocouple: PT100Chip: (Heraeus) german original Chip, Stable and High PrecisionWire: Pt100 special PTFE silver-plated shielded wireSize:Sensor OD: 3mm (+0, -0.03) down the deviationEffective length: 15mmCable length: 1500mmThe range of Temperature: 0~450 DegreeThere are four typesfor you to choose.1. Type A: KF 2 PIN connector (specifically for UM2 motherboards)2. Type B: Y-type 3 wire terminalPT100 shielded wire , the maximum temperature of teflon is approx. 260 degrees. To ensure the pt100 to measure the higher temperature, we use double fibreglass sleeving and 1000-degree thermal adhesive to protect the wire. To make working temperature is able to up to 450 degrees, and avoid the short-circuit or damage during operation.Pt100 is a high-precision resistance measurement method. Our pt100 adopts 3-wire system. The 3-wire system can reduce the influence of wire resistance error on measurement accuracy, thus making measurement more accurate. Some products are used 2-wire, 2-wire measuring accuracy is less than 3 wire.In addition, if use a connection extension cable, it increases the resistance of the wire and affects the measurement accuracy. If you have other questions, please contact our customer service, we will provide you with professional answers.
①1 pcs - PT100 degree Sensor Thermocouple sensor
or
②2 pcs - PT100 degree Sensor Thermocouple sensor
