Batteries>>>Consumer Electronics
Brand Name Heltec Automation
Certification CE
Accessory Type Battery Accessories
Origin CN(Origin)
Model Number 5S BMS
String 5s BMS Board
Current 1 12A protection board
Current 2 20A bms board
Current 3 50A bms board
Current 4 100A bms board
Current
5S 12A 3.7V
5S 20A 3.7V
5S 50A Balance 3.7V
5S 50A Balance 3.2V
5S 100A Balance 3.7V
5S 20A
5S 50A
5S 100A

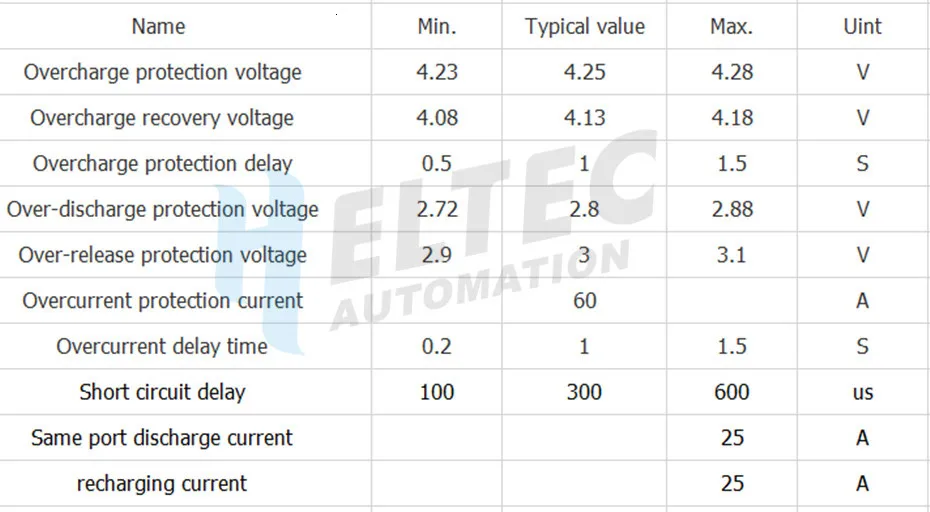

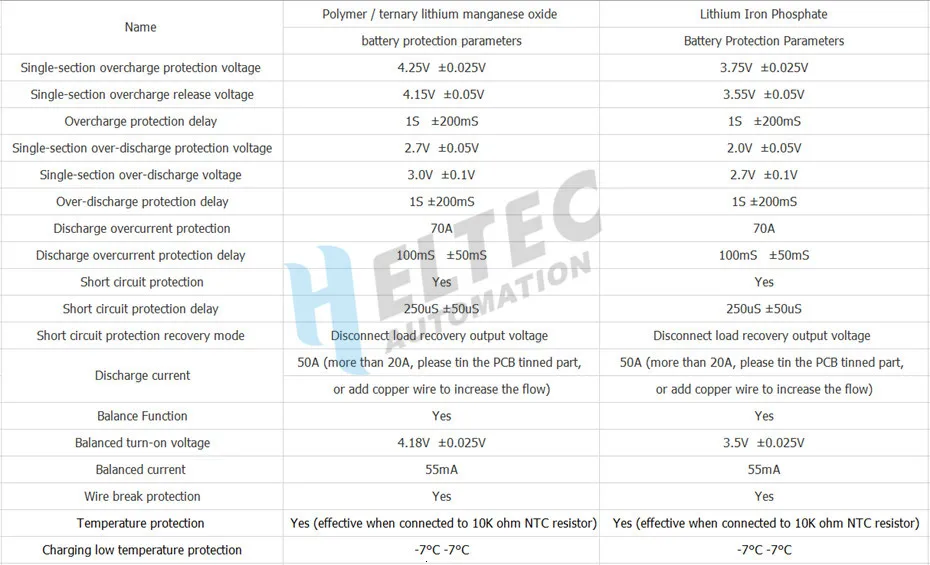

FOR Li-POLYMER LiMnO Protect Parameter(3.6V/3.7V)
Single cell battery overcharge protect voltage : 4.21-4.29 V
Single cell battery overcharge protect recover voltage : 4.14-4.24 V
Overcharge protect delay : 1.5-2.5S
Single cell battery over-discharge protect voltage : 2.72-2.88 V
Single cell battery over-discharge protect recover voltage : 2.9-3.1 V
Over charge protective current:100A
Over discharge protective current:100A
Over-discharge protect delay : 0.5-1.5S

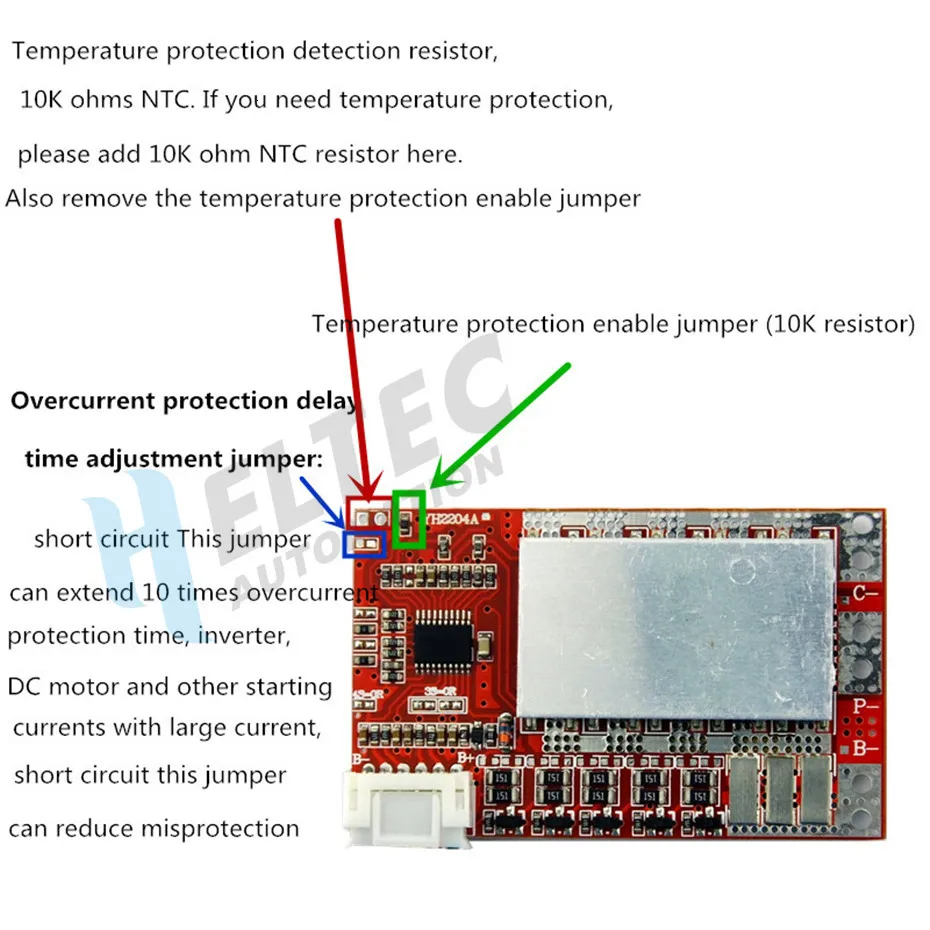

Temperature protect : Yes,have Temperature control interface.
Disconnect protect : Yes
Shortage protect : Yes
Shortage delay : 100-600 uS
Shortage protect recover mode: Off load release.
Contact discharge current:80A
Synopline discharge current:60A
Charging current:60A
balance function:yes
Ampere balance (Current) : 60MA
Current balance accuracy : 4.14-4.24V

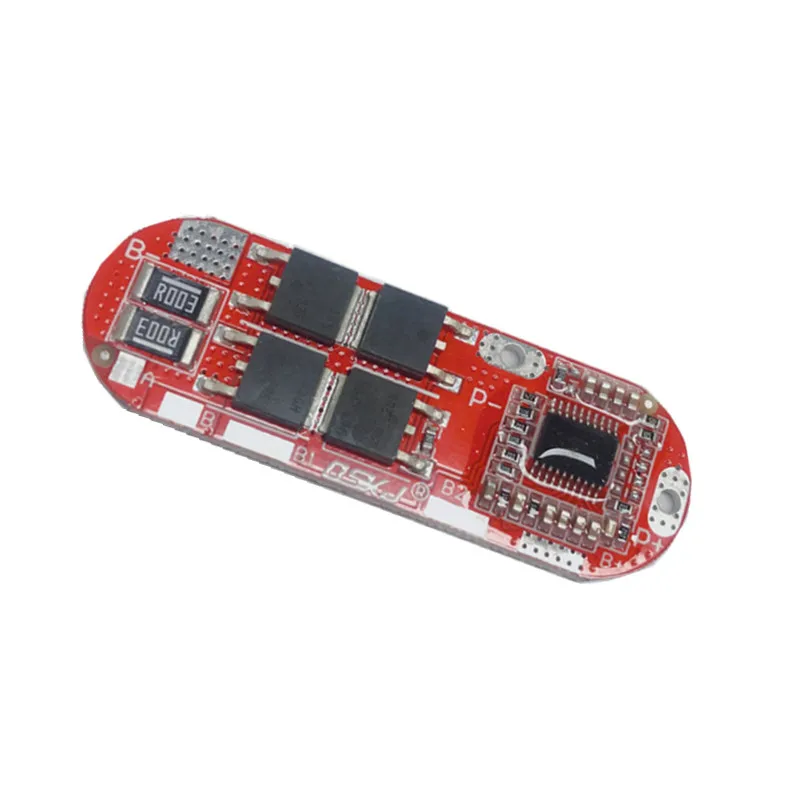

5S 15A
Size: 88 * 17 * 3MM
Keep putting current: 12A inside
Instant release current: 25A
Charging voltage: 21V
Charging current: 12A inside
Overcharge protection voltage: 4.28 (single core)
Over discharge protection voltage: 2.55 (single core)
Short circuit protection: Yes (disconnect the load)
Balanced Charge: None
Battery: Nominal 3.7V lithium battery
