SOMEDAY 36V/48V 500W Snow Bike Electric Bicycle Conversion Kit 20 26 Inch Wheel Rear Cassette Hub Motor for Fat Tire Bike

Electric Bicycle Part>>>Sports & Entertainment

Brand Name SOMEDAY

Origin CN(Origin)

Design Brushless

Certification CE

Voltage 36V48V

Wattage > 400w

Motor Type Brushless Gear Hub Motor

Wattage 500W

Controller KunTeng KT-22A Controller

Display KT(Kunteng) LCD Display

Motor Type Brushless Gear Hub Motor

Mounting Position Rear Drive

Rear Fork Fork Size 190 mm

For Mountain bike/Snowbike

Wheel Size 20" and 26"

Speed 32-35 km/h

Motor Model Snow bike 500W Cassette Motor

Rim Color Black/Red/Blue/Green

Use1 Modified electric bicycle kit

Use 2 Snow bike/Fat tire bike

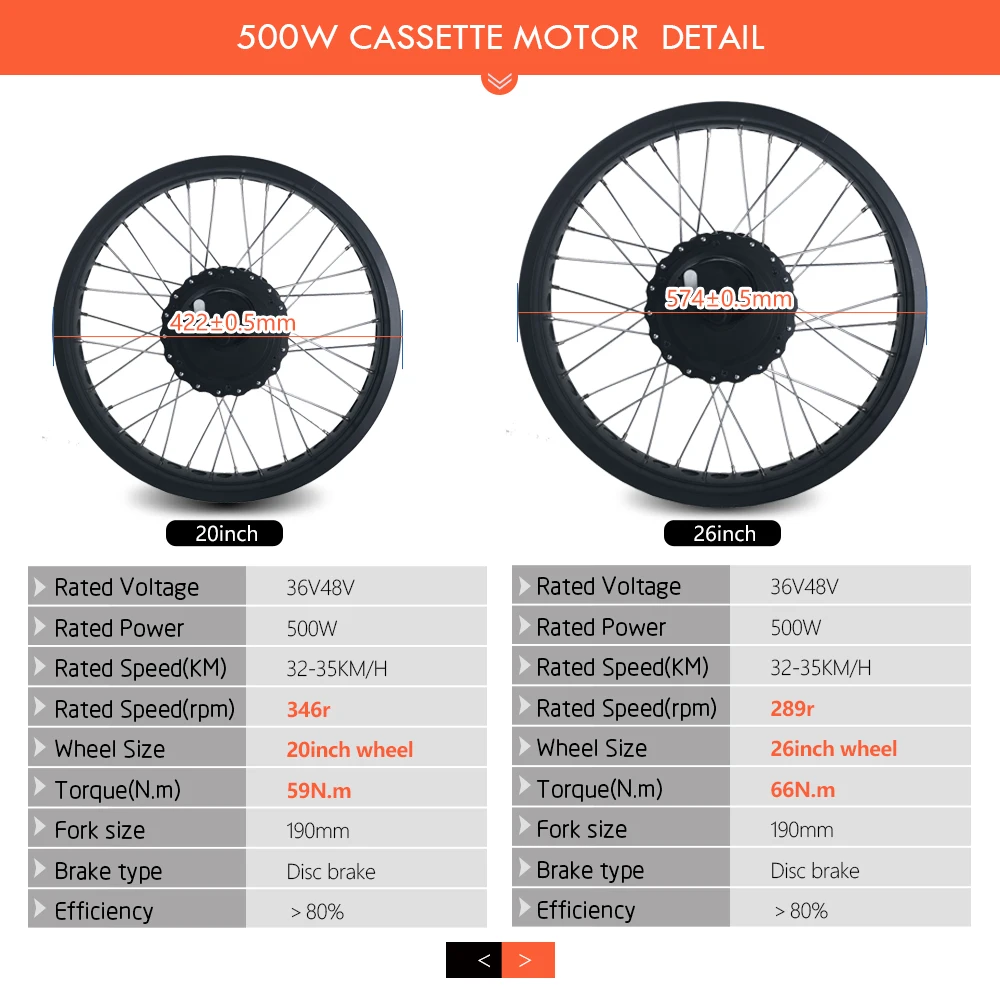

Cassette Motor Speed 289-346 RPM Electric Wheel Motor

Hub Motor Torque 59-66 N.M e Bike Kit Bicicleta Electrica

Brake system disc brake compatible

Color

Wheel Size

20''

26''

【Buyer’s Guide (Note)】

Dear friends, Hello!

The price displayed by the product includes VAT, not the final price,

There is no need to pay any taxes (VAT, customs duties, agency fees, etc.) when you place an order

Please rest assured to buy

【E-bike Conversion Kit Paramater】

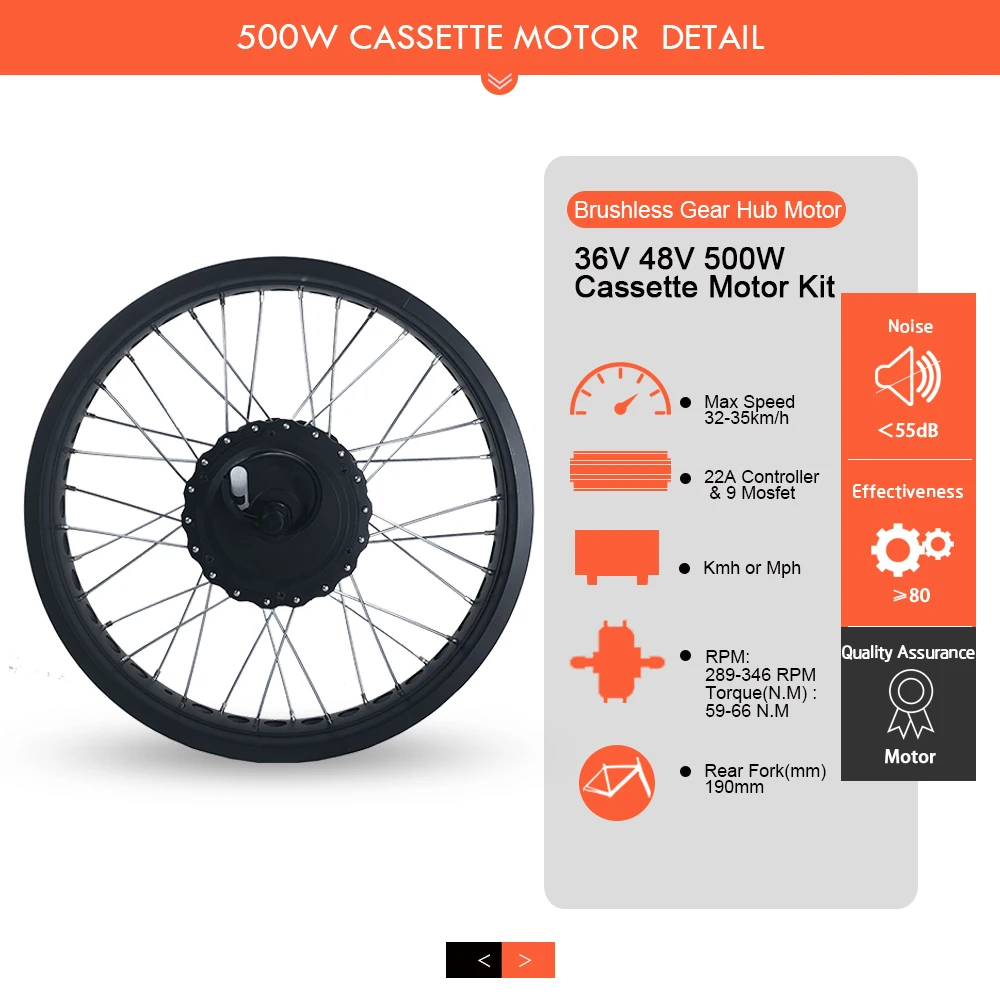

Motor：

●Type:Brushless gear hub motor

●Installation location:Rearwheel

●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes

●Brake Type:Disc brake available

●Rated speed:32-35 KM/H.

●Load≤200KG

●Motor cable length:200mm

●Wheel size:20inch 26 inch wheel

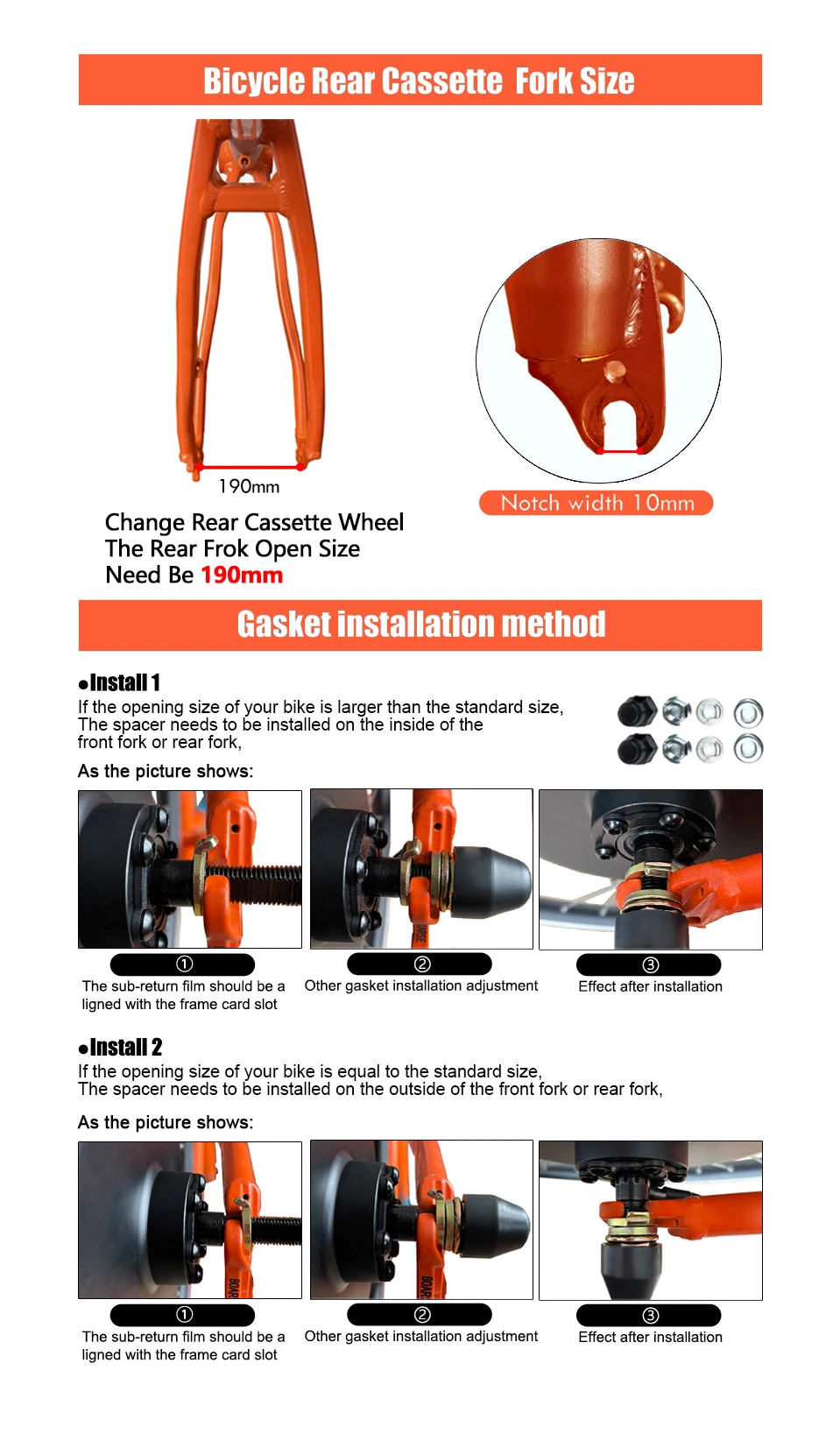

●Rear fork:190mm

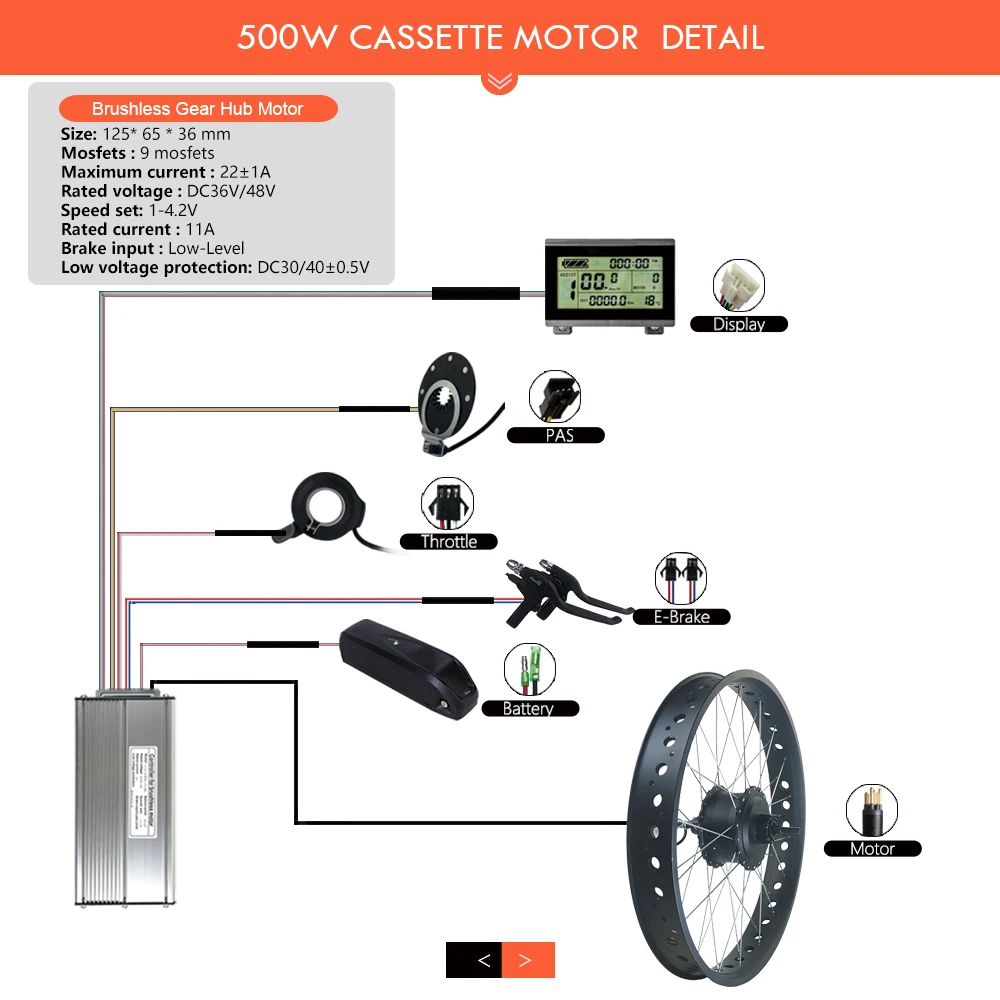

Controller：

●Dimension:128* 68 * 38 mm

●Weight:350g

●Cable length :all about 10-13cm

●Mosfets :9 mosfets

●Maximum current:22±1A

●Rated voltage:DC36V/48V

●Speed set:1-4.2V

●Rated current:11A

●Brake input :Low-Level

●Low voltage protection:DC30/40±0.5V

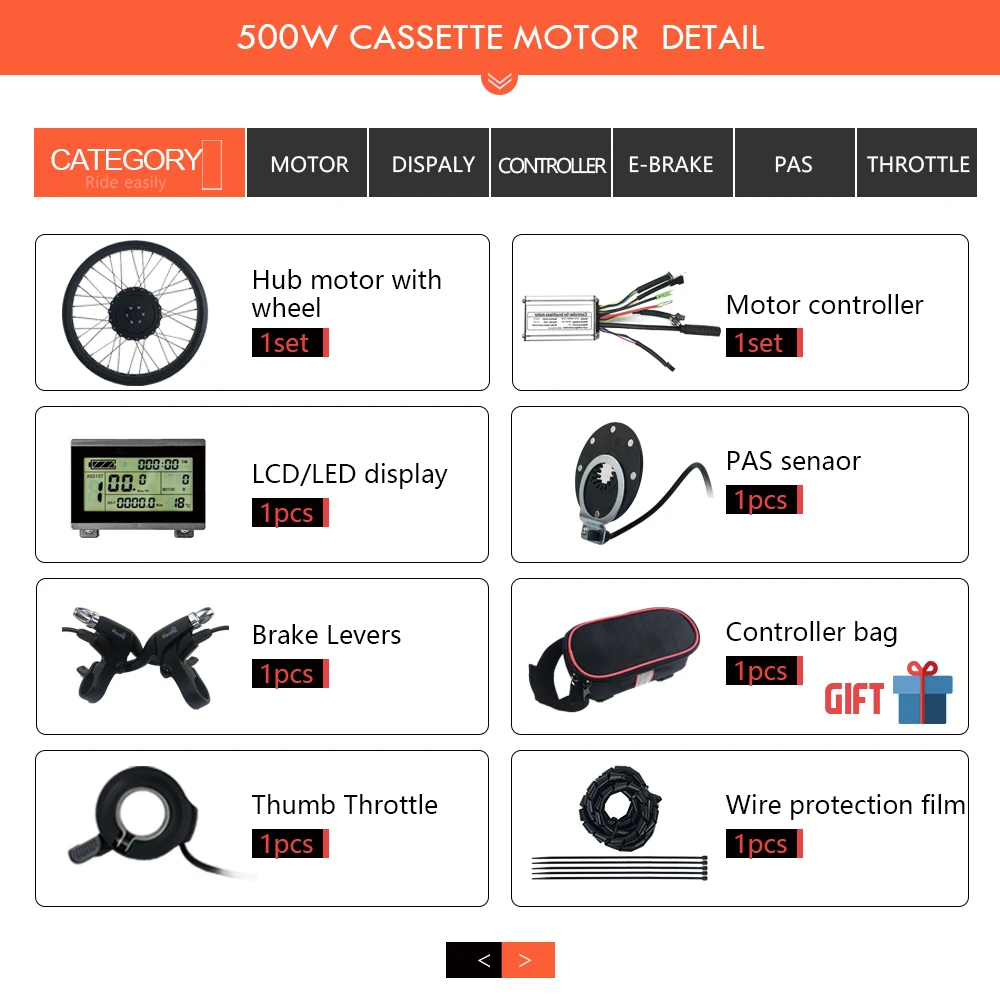

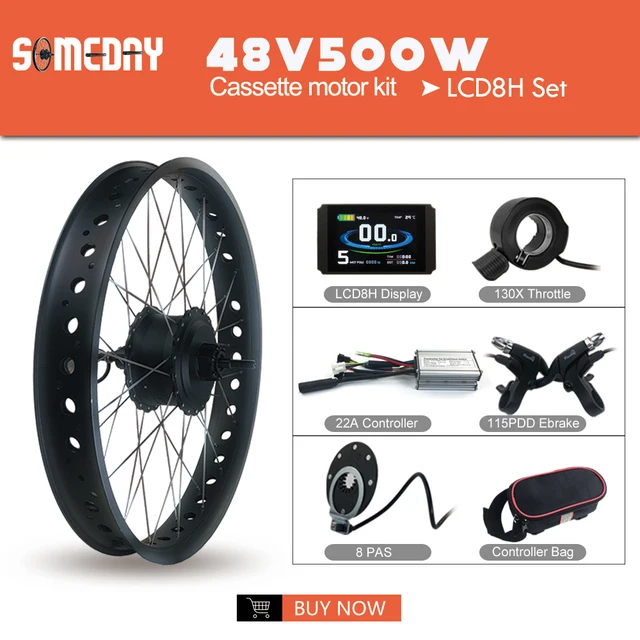

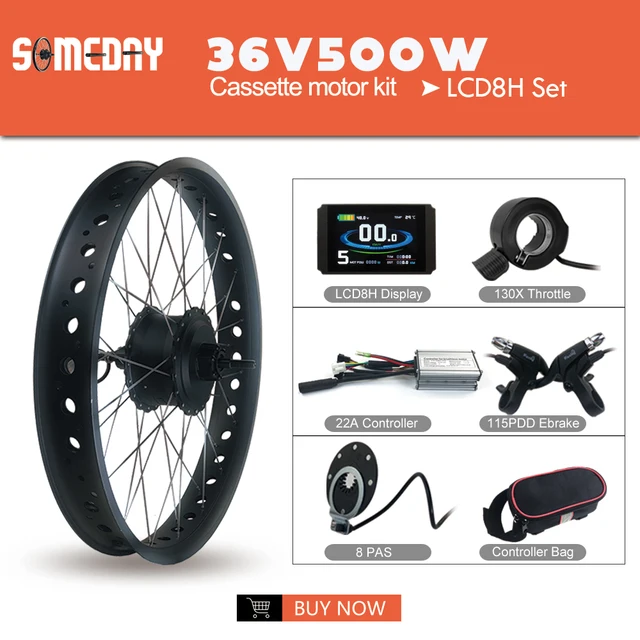

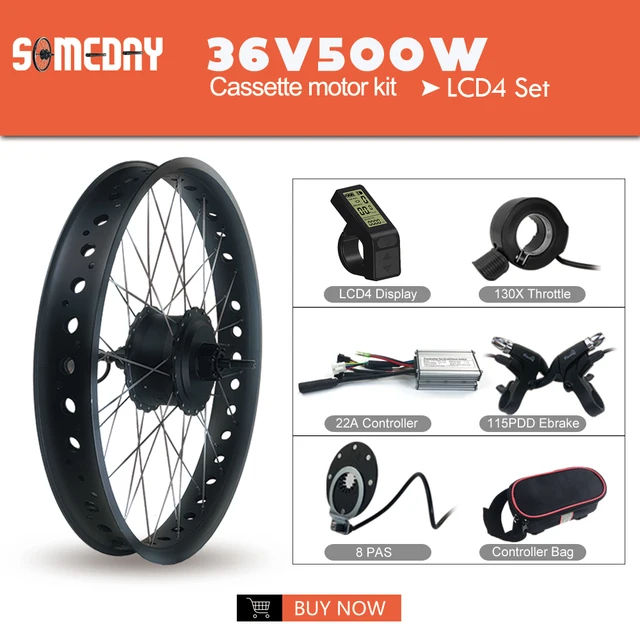

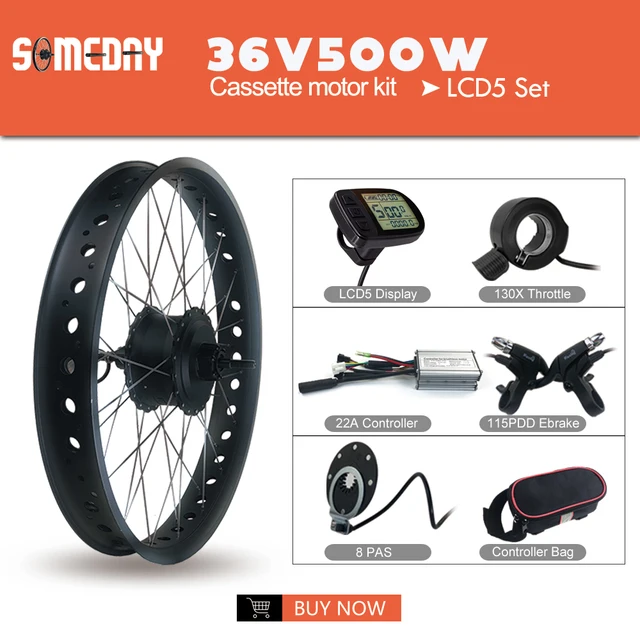

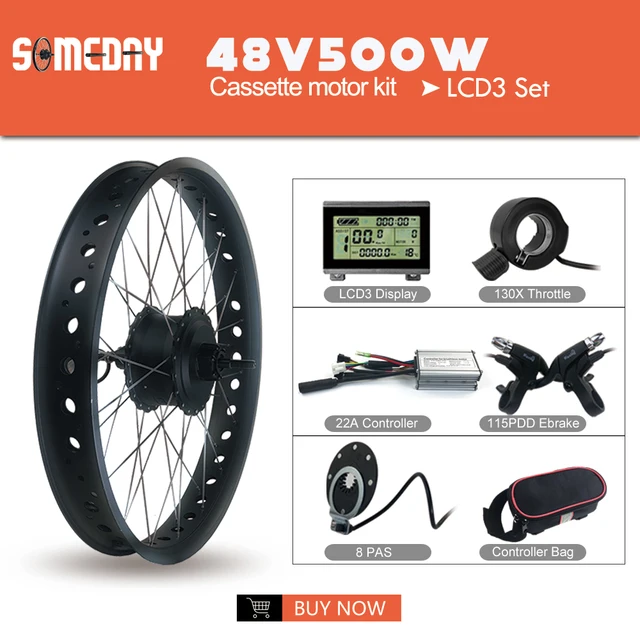

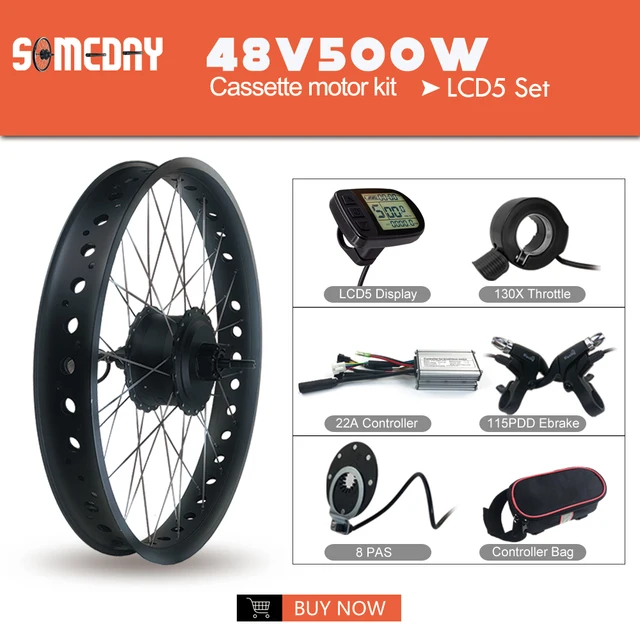

【Packing List】

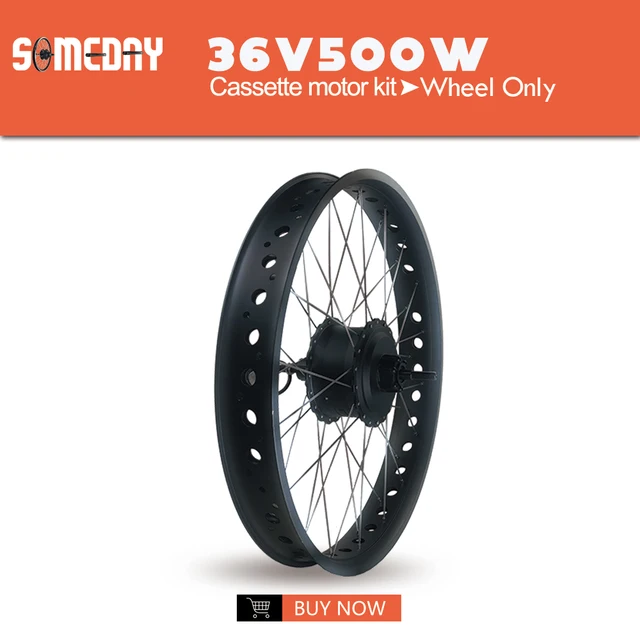

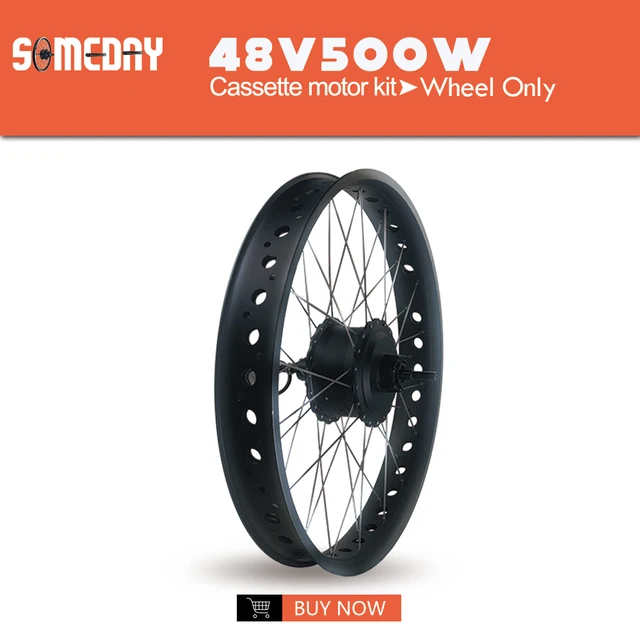

(1) 36V48V 500W rear Wheel x1 (without tire)

(2) 22A controller x1

(3) Display and manual x1

(4) Throttle x1

(5) Power Cut-off Brake x1

(6) PAS sensor x1

(7) Zip ties and Protection line x1

(8) Gift! controller bag x1
