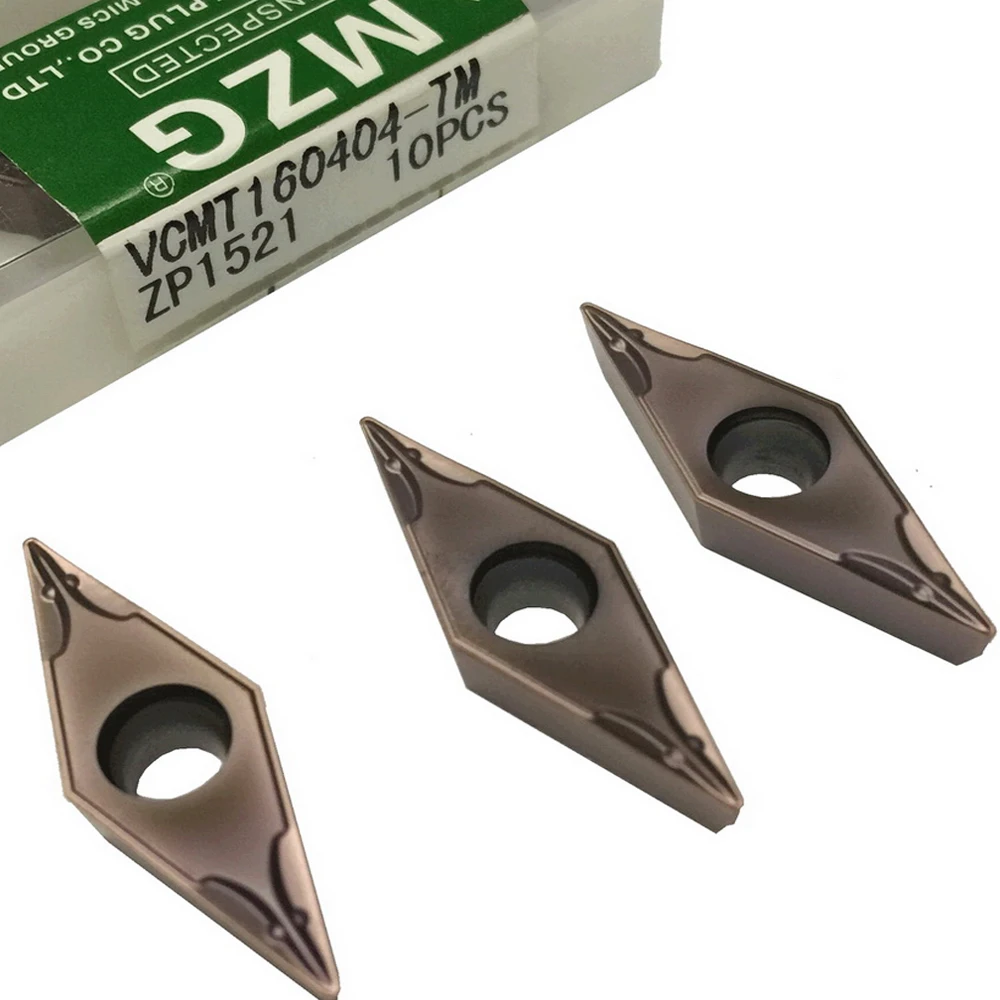

MZG VCMT 160404 TM ZP1521 Solid Indexable Carbide Inserts for Turning Boring Cutting Tools Stainless Steel Processing Toolholder

Turning Tool>>>Tools

Brand Name MZG

Certification None

Origin CN(Origin)

Coating TiAlN

Model Number VCMT160404-TM ZP1521

Hardness HRA89.5~92.8

Usage External Turning Tool

Material Hard Alloy

Insert Width(mm)

VCMT160404-TM ZP1521

MZG VCMT160404 TM ZP1521 Solid Indexable Carbide Inserts for Turning Boring Cutting Tools Stainless Steel Processing Toolholder1.MZG Tungsten Carbide Inserts Item SpecificsMZG Tungsten Carbide Inserts Specification Parameter

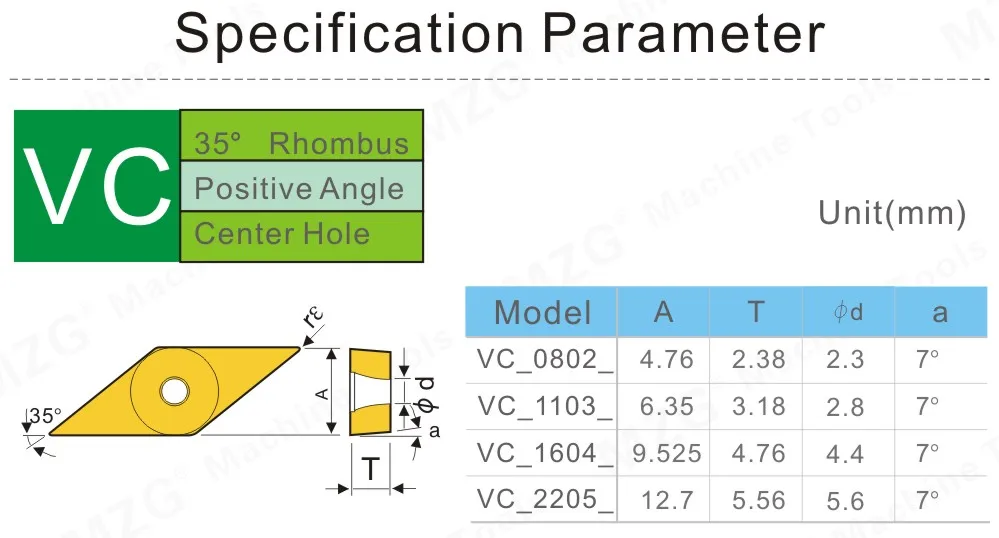

Specification         Material    Corner-R    Application

VCMT160404-TMZP1521R0.4StainlessSteelProcessing

2.MZG Tungsten Carbide Inserts Product Photo

3.MZG Tungsten Carbide Inserts Packing InfoInsert Packing Info

4.MZG Tungsten Carbide Inserts ParameterMZG CNC Tool Insert Material Introduce1.Coated Carbide(CVD)

Applicable from low to high speed cutting and from finishing to roughin.

Stable cutting is achieved due to the superior toughness and crack resistance.

Cutting times are reduced due to good chip control from effective chipbreakers.

Achieving superior processing efficiency in the field of a wide range of steel/casting Parts processing.ZC2501 ZC2502: suitable for low speed machining of steel partZC2511 ZC2512: suitable for high speed machining of steel partZK3511S: suitable for hihg speed machining of cast iron part2.Coated Carbide(PVD)

Good for low to high speeds and finishing to heavy roughing cutting.

Stable cutting with excellent toughness.

Smooth fine surface of PVD coated carbide provides good surface finish and high.

Achieved high reliability in the unstable processing field of stainless steelZP1521: suitable for high speed machining of stainless steel3.Cermet

Excellent wear resistance enables high cutting speeds

Cermet maintains good surface finished due to the low affinity to workpiece material.

Excellent wear resistance enables high cutting speeds.

ZN60: suitable for steel/cast finish processing4.Carbide

Tough and Hard, good thermal conductivity

Suitable for cutting non-ferrous metals and non-metals

Stable cutting at low cutting speeds, including milling operations

ZK10: suitable for Cutting Aluminum Al non-ferrous processing5.CBN

Superior wear resistance when cutting hard materials

Suitable for high speed cutting of cast iron and sintered steel

High thermal conductivity provide stable cutting

CBN-S: suitable for difficult cutting material processingCBN-K: suitable for cast iron processing6.PCD (Diamond Sinter)

Applicable for non-ferrous metals, non-metals turning milling and other various type of cutting .

Reduced edge build-up allows for high precision cutting.

Diversified applications for cutting of non-ferrous metals and non-metals.

Finished surface will be rainbow colored.(a mirror-like finished surface will not be obtained when single crystal diamond is used.)

PCD: suitable for cast iron processing

MZG CNC Tool Insert Material IntroduceMZG Tungsten Carbide Inserts Cutting Parameter RecommendCutting Parameter Recommend

5.MZG Tungsten Carbide Inserts InstructionSafety Notes for Cutting Tool1 IntroductionMZG has put a "caution" or a "warning" label on the package of the cutting tool products, but it is not on the tool itself.Before using and handling any cutting tool products and cutting tool materials, be sure to read this guideline so they are used correctly.Also, as part of your safety education,please make sure to familiarize all of your actual operators with the contents of this guideline.2 Basis Information for Cutting Tool Materials2-1 Technical TermsCutting Tool Material: Terminology for cutting tool materials,such as Cemented Carbide, Coated Carbide,Cermet, Coated Cermet,Ceramics, CBN and PCD.Carbide Material: Cement Carbide with WC(Tungsten Carbide) as the main component.2-2 Physical PropertiesApprearance: Depends on materials(eg Grey,Black,Gold,ect.)Smell:NoneHardness:Carbide/Cermet 5~30GPaHV, Ceramic 10-40 GPaHVCBN 20~50GPaHV,PCD 80~120 GPaHVSp.Gr.:Carbide 9~16, Cermet 5~9, Ceramic 2~7,CBN/PCD 3~52-3 CompositionCarbide, Nitride,Carbon-nitride and Oxide with W,Ti, Al, Si, Ta,B, ect. and additionally,metal such as Co, Ni, Cr,Mo are included in some cutting material.Precaution for using cutting tool1.General Cutting Tools
