Tablet LCDs & Panels>>>Computer & Office
Brand Name Wisecoco
Certification None
Product Type Tablet LCD
Origin CN(Origin)
Display Size 7~10 Inch
Model Number N070ICG-LD1
Screen Type Capacitive Screen
Compatible Brand Universal
Panel Size 7 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 1280(RGB)*800, WXGA, 217PPI
Pixel Format RGB Vertical Stripe
Display Area 149.76(W)*93.6(H) mm
Bezel Opening 151.76(W)*95.6(H) mm
Outline Size 161(W)*107(H) *4.5(D) mm
Surface Glare , Hard coating (3H)
Brightness 400 (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 89 89 89 89
Display Mode IPS, Normally Black, Transmissive
Signal Interface LVDS (1 ch, 8-bit) , 39 pins Connector
Color
Control board

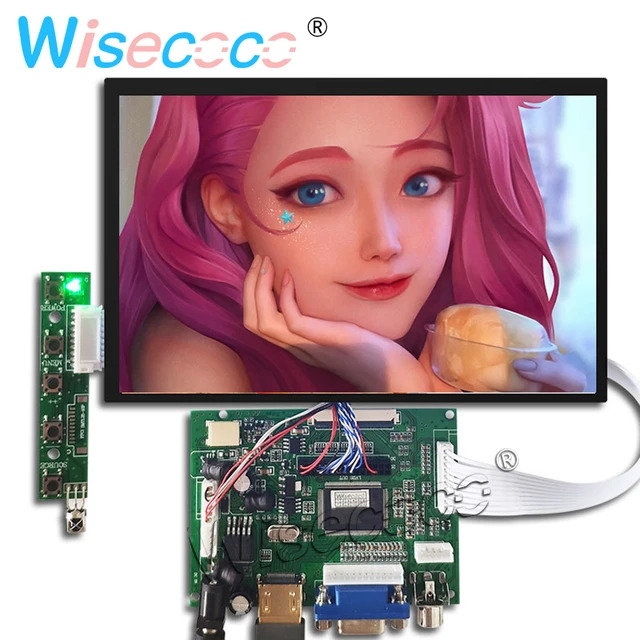

7 Inch IPS 1280*800 LCD Screen Display VGA HDMI Drive Board 39 pins
Main Features1： WLED Backlight, 2：With LED Driver, 3：U/D,L/R Reverse, 4：Glossy , 5：CABC, 6：39pins 0.3mm pitch，
